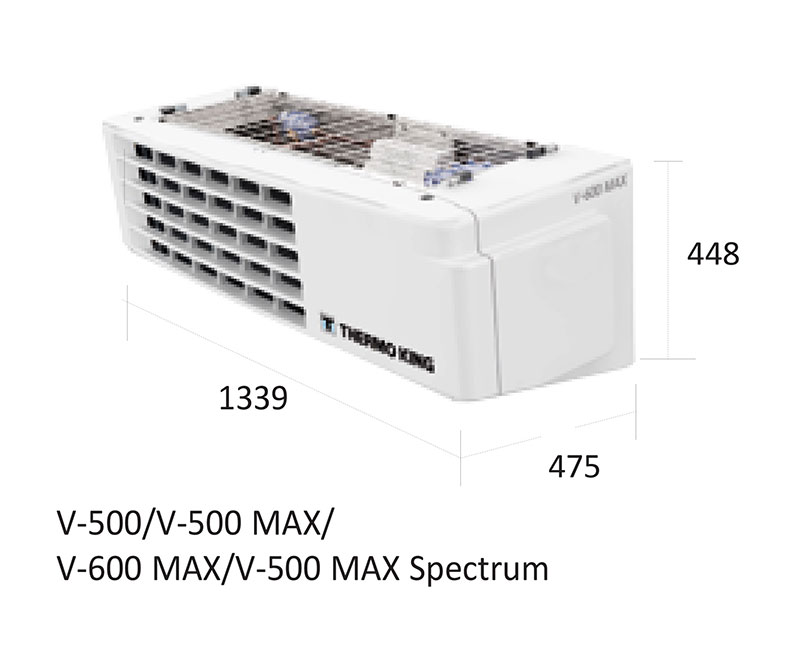

SPECIFICATIONS		V-500		V-500 MAX
REFRIGERATION CAPACITY: AT 30°C AMBIENT
	°C	0°C	-20°C	0°C	-20°C
Air return/on the road	W	3915	1655	4890	2630
Electric standby 50Hz	W	3160	1090	4215	1830
HEATING CAPACITY: AT 18°C AMBIENT/2400RPM
On the road swash plate compressor	W	-		3600
Electric standby operation	W	-		3120
AIRFLOW
Airflow volume @ 0 pa static pressure	m³/h	2200		2200
WEIGHT
Condenser w/o electric standby	kg	53		53
Condenser with electric standby	kg	125		125
Evaporator	kg	25.50		25.50
Swash plate compressor	kg	7.10		7.10
COMPRESSOR
Model		QP16		QP16
Displacement	cc	163		163
Number of cylinders		6		6
ELECTRIC STANDBY MOTOR
Voltage/phase/frequency		400/3/50 - 380/3/60 - 230/3/50 - 230/3/60 - 230/1/50 - 230/1/60
Rating	kW	6.40 (400/3/50)		6.40 (400/3/50)
REFRIGERANT CHARGE
Charge	kg	10: 2.00 20: 2.20		10: 2.10 20/30: 2.20 50: 2.30
GENERIC (BOXLENGTH, REFRIGERANT...)
Refrigerant		R-134A		R-404A
Controller		DSR III		DSR III
DEFROST
Defrost		Automatic hot gas defrost/Reverse cycle

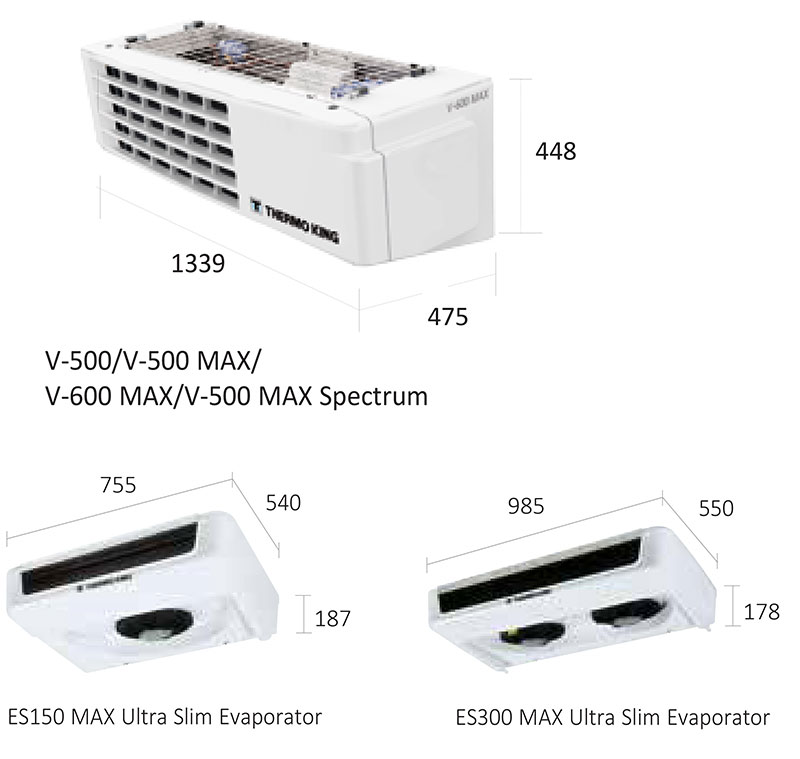

SPECIFICATIONS	V-500 MAX SPECTRUM
REFRIGERATION CAPACITY: AT 30°C AMBIENT
		ES300 MAX+ ES300 MAX		ES300 MAX+2xES150 MAX		ES300 MAX+ES150 MAX
Return air to evaporator	°C	-20°C		-20°C		-20°C
Capacity on engine power	W	2390		2390		2390
Capacity on electrical stand	W	2005		2005		2005
REFRIGERATION CAPACITY: INDIVIDUAL COOLING CAPACITY
		ES300 MAX		2XES150 MAX		ES150 MAX
Return air to evaporator		0°C	-20°C	0°C	-20°C	0°C	-20°C
Capacity on engine power	W	3585	1930	3975	2055	2925	1580
Capacity on electrical stand	W	3385	1735	3595	1770	2580	1380
HEATING CAPACITY
On the road	W	3600
Electric standby	W	3120
AIRFLOW
		ES300 MAX + ES300 MAX		ES300 MAX + 2XES150 MAX		ES300 MAX + ES150 MAX
On high speed engine	m³/h	2x1185		1185+(2x700)		1185+700
WEIGHT
Condenser w/o electric standby	kg	53
Condenser with electric standby	kg	125
Evaporator ES300 MAX	kg	18
Evaporator ES150 MAX	kg	12.50
Swash plate compressor	kg	7.10
COMPRESSOR
Model		QP16
Displacement	cc	163
Number of cylinders		6
ELECTRIC STANDBY MOTOR
Voltage/phase/frequency		400/3/50 - 230/3/50 - 230/3/60 - 230/1/50 - 230/1/60 - 380/3/60
Rating	kW	6.40 (400/3/50)
REFRIGERANT CHARGE
Charge	kg	10: 2.30 - 20/30: 2.40 - 50: 2.50

GENERIC (BOXLENGTH, REFRIGERANT...)
Refrigerant		R-404A
Controller		DSR III
DEFROST
Defrost		Automatic hot gas defrost

Note: Specification are subjected to change without notice.

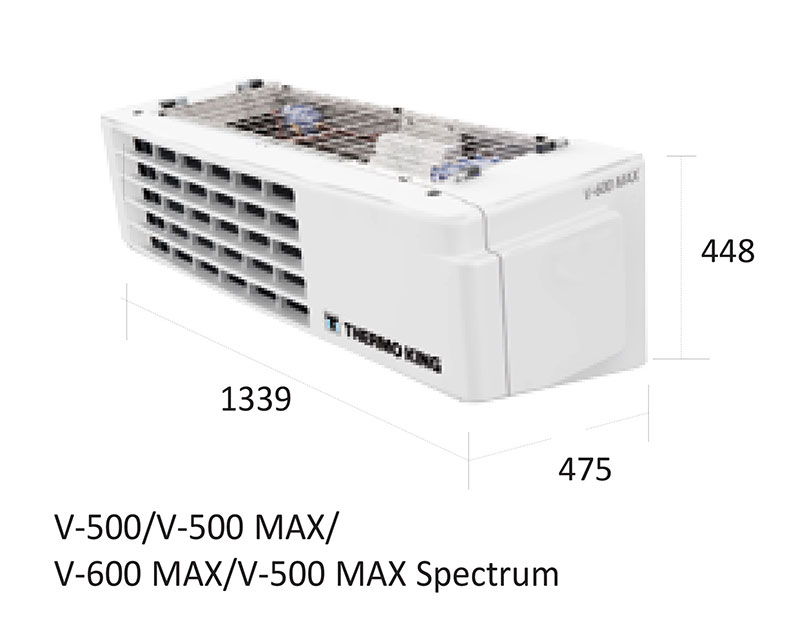

SPECIFICATIONS	V-600 MAX
REFRIGERATION CAPACITY: AT 30°C AMBIENT
	°C	0°C	-20°C
Air return/on the road	W	3915	2630
Electrical standby 50Hz	W	3160	1830
REFRIGERATION CAPACITY: AT -18°C AMBIENT/2400RPM
On the road swash plate compressor	R-404A (W)	3600
Electrical standby operation		3120
AIRFLOW
Airflow volume @ 0 pa static pressure	m³/h	2200
WEIGHT
Condenser w/o electric standby	kg	53
Condenser with electric standby	kg	125
Evaporator	kg	25.50
Swash plate compressor	kg	7.10
COMPRESSOR
Model		QP16
Displacement	cc	163
Number of cylinders		6
ELECTRIC STANDBY MOTOR
Voltage/phase/frequency		400/3/50 - 380/3/60 - 230/3/50 - 230/3/60 - 230/1/50 - 230/1/60
Rating	kW	6.40 (400/3/50)
REFRIGERANT CHARGE
Charge		10: 2.10 20/30: 2.20 50: 2.30
GENERIC
Refrigerant		R-404A
Controller		DSR III
DEFROST
Defrost		Automatic hot gas defrost/Reverse cycle

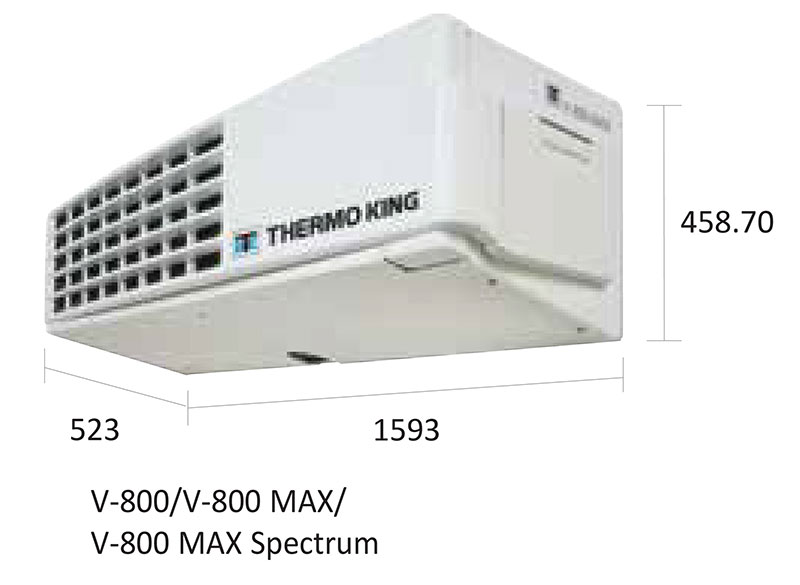

SPECIFICATIONS		V-800		V-800 MAX
REFRIGERATION CAPACITY: AT 30°C AMBIENT
	°C	0°C	-20°C	0°C	-20°C
Air return/on the road	W	5715	-	7790	4160
Electric standby 50Hz	W	4920	-	7030	3795
HEATING CAPACITY: AT 18°C AMBIENT/2400RPM
On the road swash plate compressor	R-404A (W)	-		7030
Electric standby operation		-		6450
AIRFLOW
Airflow volume @ 0 pa static pressure	m³/h	2680		2680
WEIGHT
Condenser w/o electric standby	kg	100		100
Condenser with electric standby	kg	160		160
Evaporator	kg	35		35
Swash plate compressor	kg	8.50		8.50
COMPRESSOR
Model		QP21		QP21
Displacement	cc	215		215
Number of cylinders		10		10
ELECTRIC STANDBY MOTOR
Voltage/phase/frequency		400/3/50 - 380/3/60 - 230/3/50 - 230/3/60 - 230/1/50 - 230/1/60
Rating	kW	8.20 (400/3/50)		8.20 (400/3/50)
REFRIGERANT CHARGE
Charge	kg	10: 4.55 20: 4.85		10/20: 4.70 20/50: 5.00
GENERIC (BOXLENGTH, REFRIGERANT...)
Refrigerant		R-134A		R-404A
Controller		DSR III		DSR III
DEFROST
Defrost		Automatic hot gas defrost/Reverse cycle

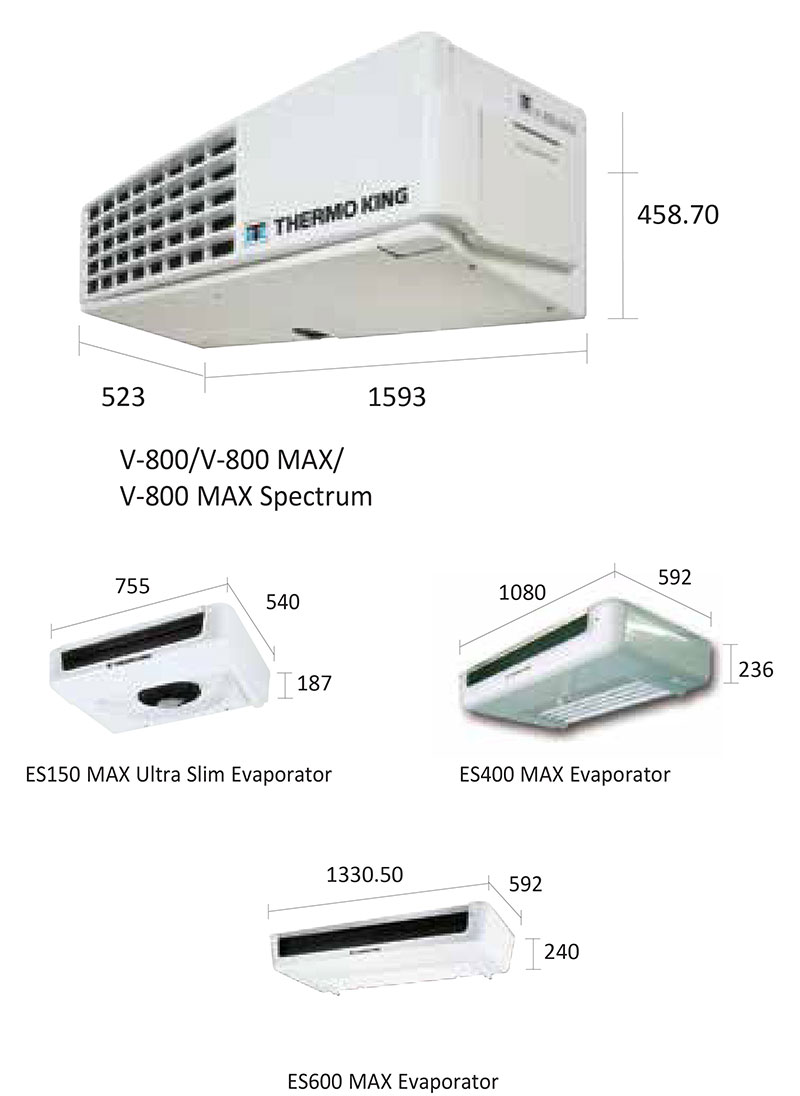

SPECIFICATIONS	V-800 MAX SPECTRUM
REFRIGERATION CAPACITY: AT 30°C AMBIENT
		ES400 MAX+ ES400 MAX			ES600 MAX+ ES150 MAX			ES600 MAX+ 2x ES150 MAX
Return air to evaporator	°C	-20°C			-20°C			-20°C
Capacity on engine power	W	4395			3850			4300
Capacity on electrical stand	W	3595			3385			3595
REFRIGERATION CAPACITY: INDIVIDUAL COOLING CAPACITY
		ES400 MAX		ES600 MAX		ES150 MAX		2 X ES150 MAX
Return air to evaporator		0°C	-20°C	0°C	-20°C	0°C	-20°C	0°C	-20°C
Capacity on engine power	W	5740	3300	6765	3460	3975	2270	5640	2995
Capacity on electrical stand	W	5300	3010	6305	3110	3850	2165	5045	2705
HEATING CAPACITY
On the road	W	4500
Electric standby	W	4000
AIRFLOW
		ES400 MAX + ES400 MAX			ES600 MAX + ES150 MAX			ES600 MAX + 2XES150 MAX
On high speed engine	m³/h	1760x2			2260+890			2260+(2x890)
WEIGHT
Condenser w/o electric standby	kg	100
Condenser with electric standby	kg	160
Evaporator ES600 MAX	kg	28
Evaporator ES400 MAX	kg	20
Evaporator 2 X ES150 MAX	kg	25
Evaporator ES150 MAX	kg	12.50
Swash plate compressor	kg	8.50
COMPRESSOR
Model		QP21
Displacement	cc	215
Number of cylinders		10
ELECTRIC STANDBY MOTOR
Voltage/phase/frequency		400/3/50 - 230/3/50 - 400/3/60 - 230/3/60
Rating	kW	8.30 (400/3/50)
REFRIGERANT CHARGE
Charge	kg	ES400 + ES400: 5.20 - ES600 + ES150 : 5.00 - ES600 + 2XES150: 5.15
GENERIC (BOXLENGTH, REFRIGERANT...)
Refrigerant		R-404A
Controller		DSR III
DEFROST
Defrost		Automatic hot gas defrost

Note: Specification are subjected to change without notice.
